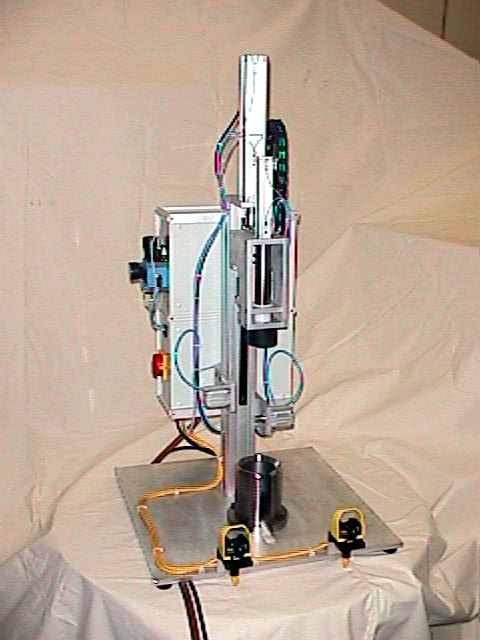

Multi-stage assembly presses
A canister is placed into the fixture and each of three components is manually placed and pressed into the canister. Each component is pressed to a specific depth in the container.

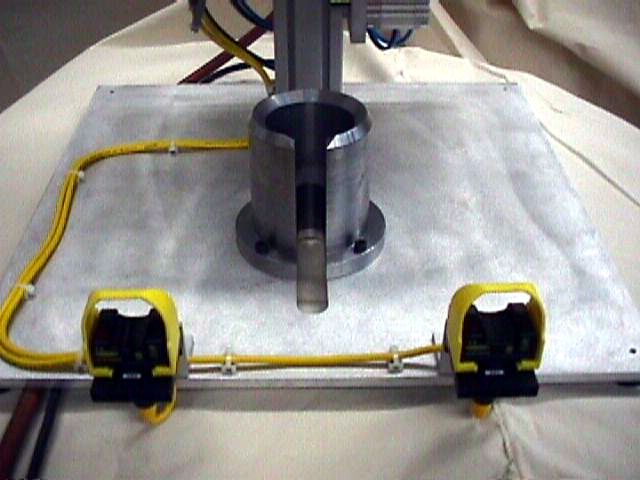

As each component is manually placed by the operator. The dual palm switches must be maintained to cycle the press.

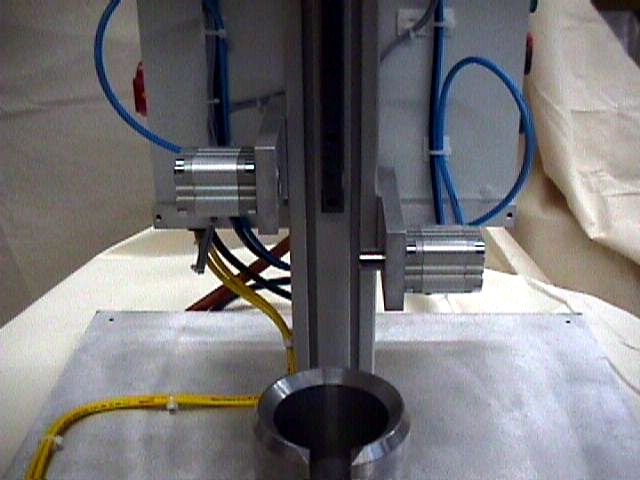

Two stop cylinders alternate during each stroke of the cycle to limit the depth of the press stroke.
