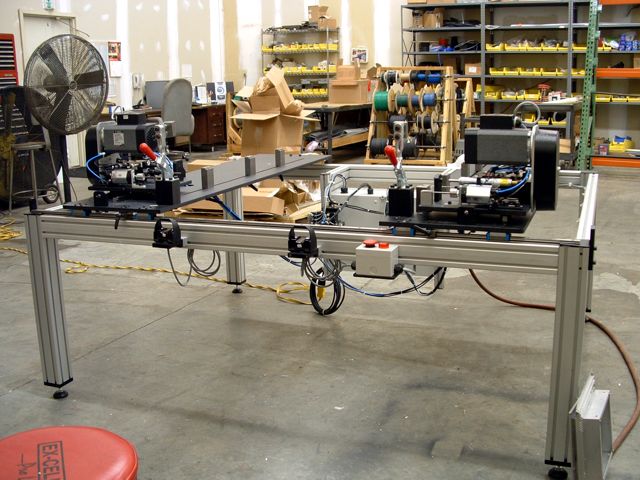

Dual station drill and pin insertion machine

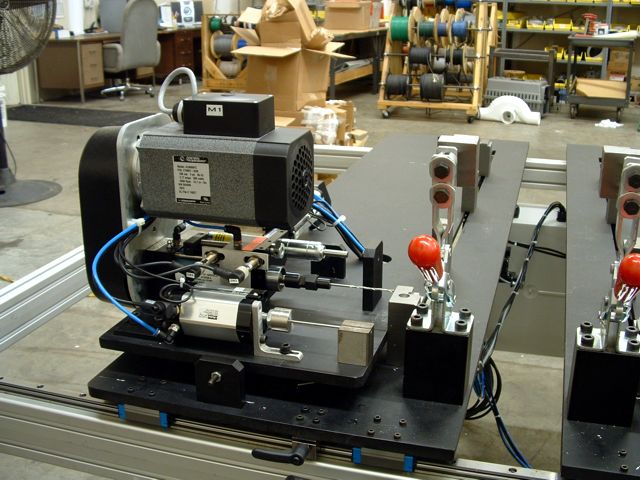

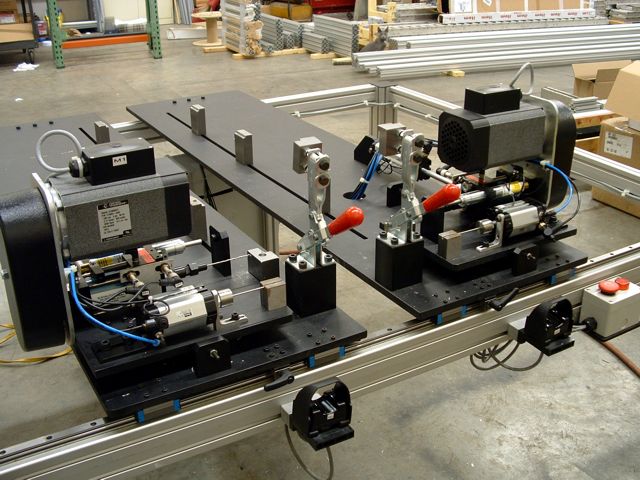

Each drill unit is mounted on a slide so each side can be width adjusted.

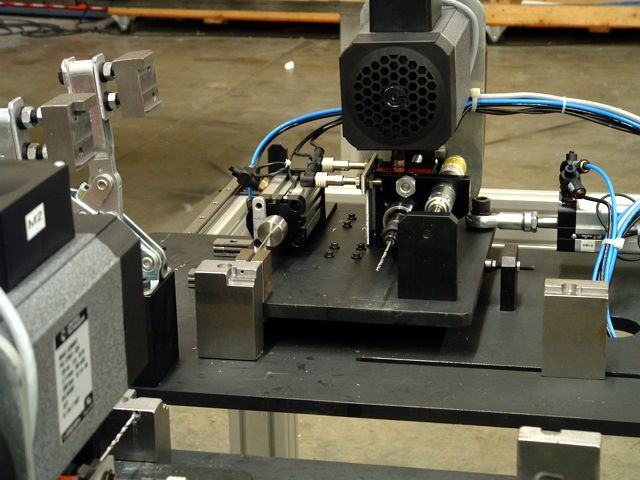

Each drill is on a two-position slide, one position for drilling the other to press in the pin.



The frame sits in a drill jig guide block and provides hole location control.
